ThinkPad L14 Gen 4 Intel Core i7-1355UUmma SadiaFebruary 10, 2025February 27, 2025

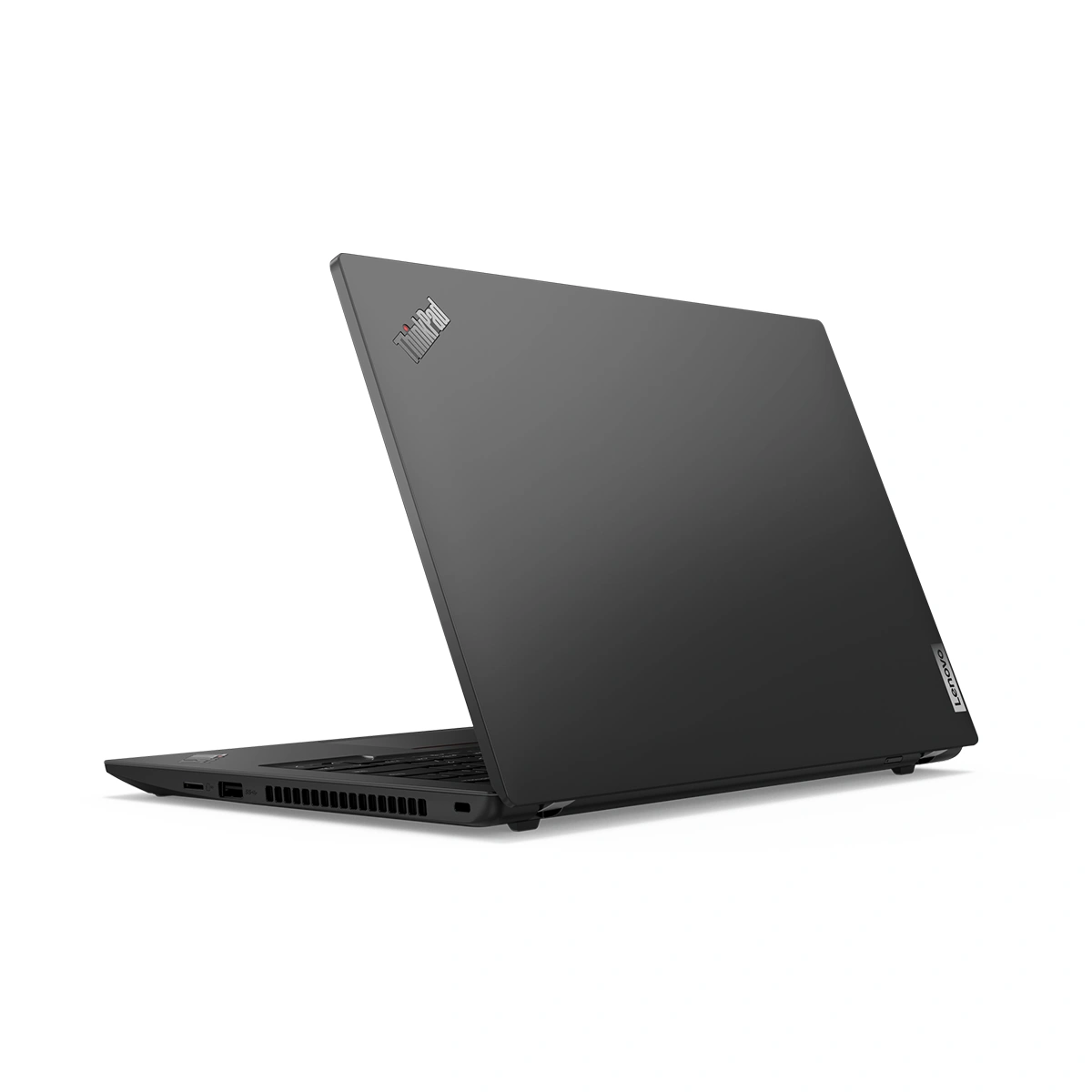

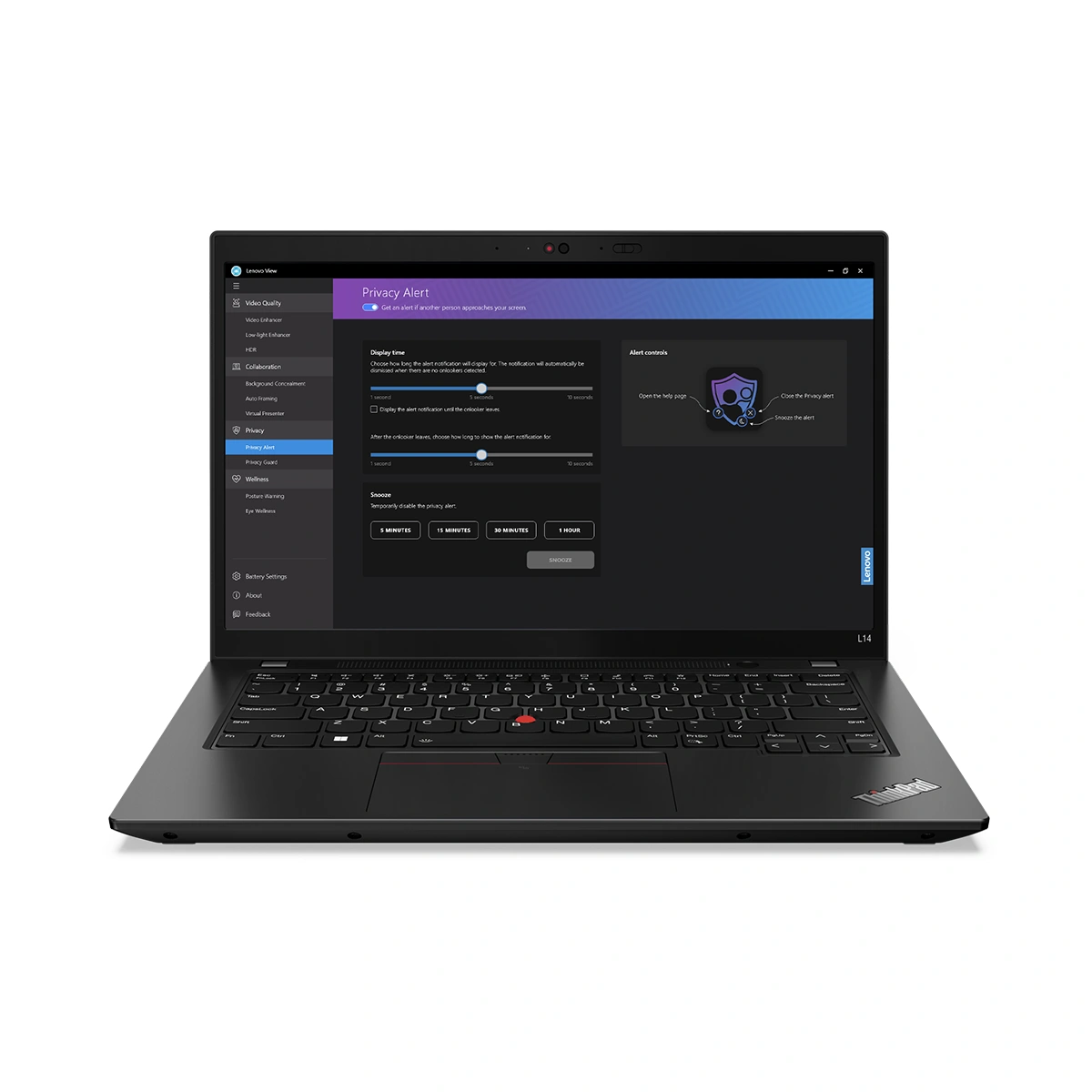

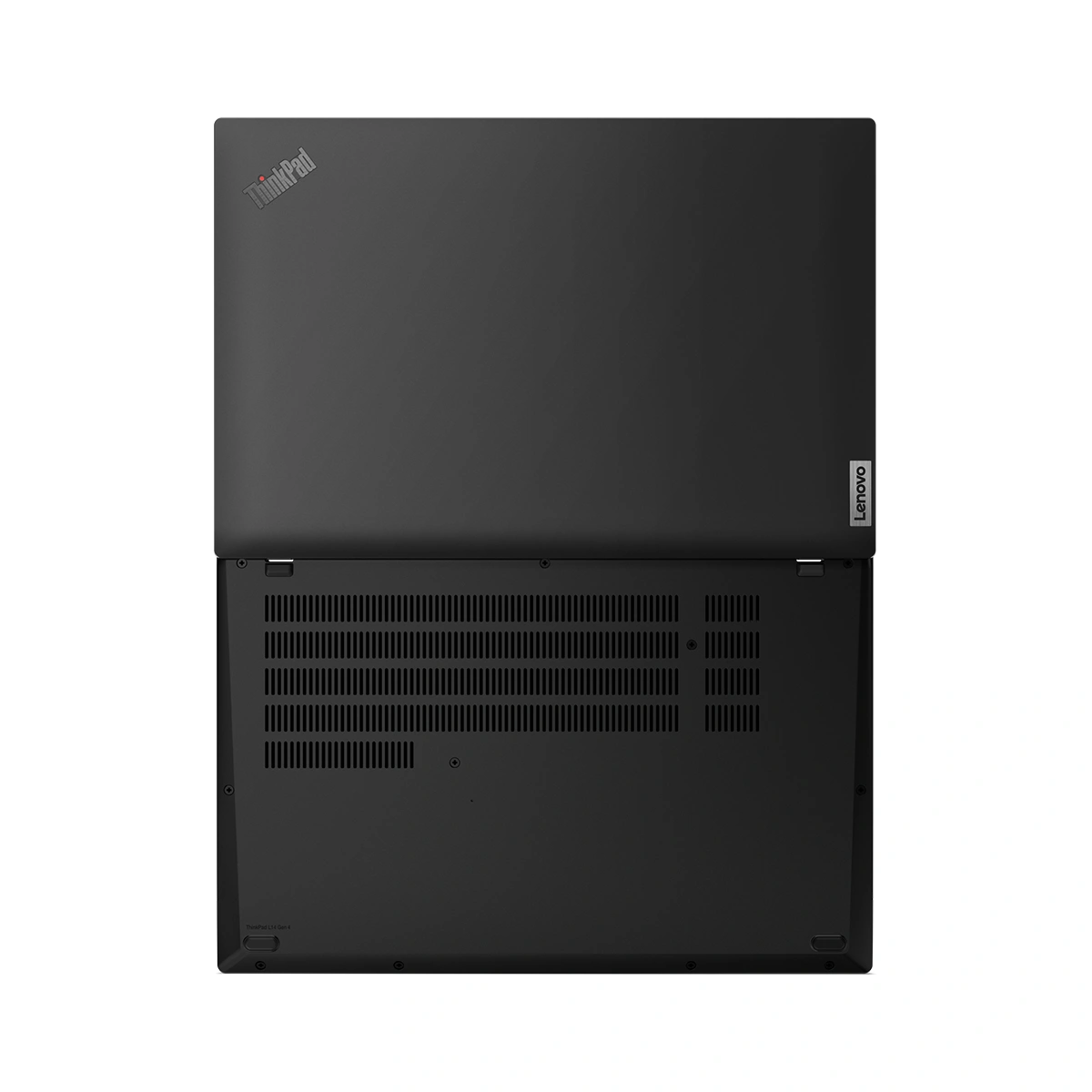

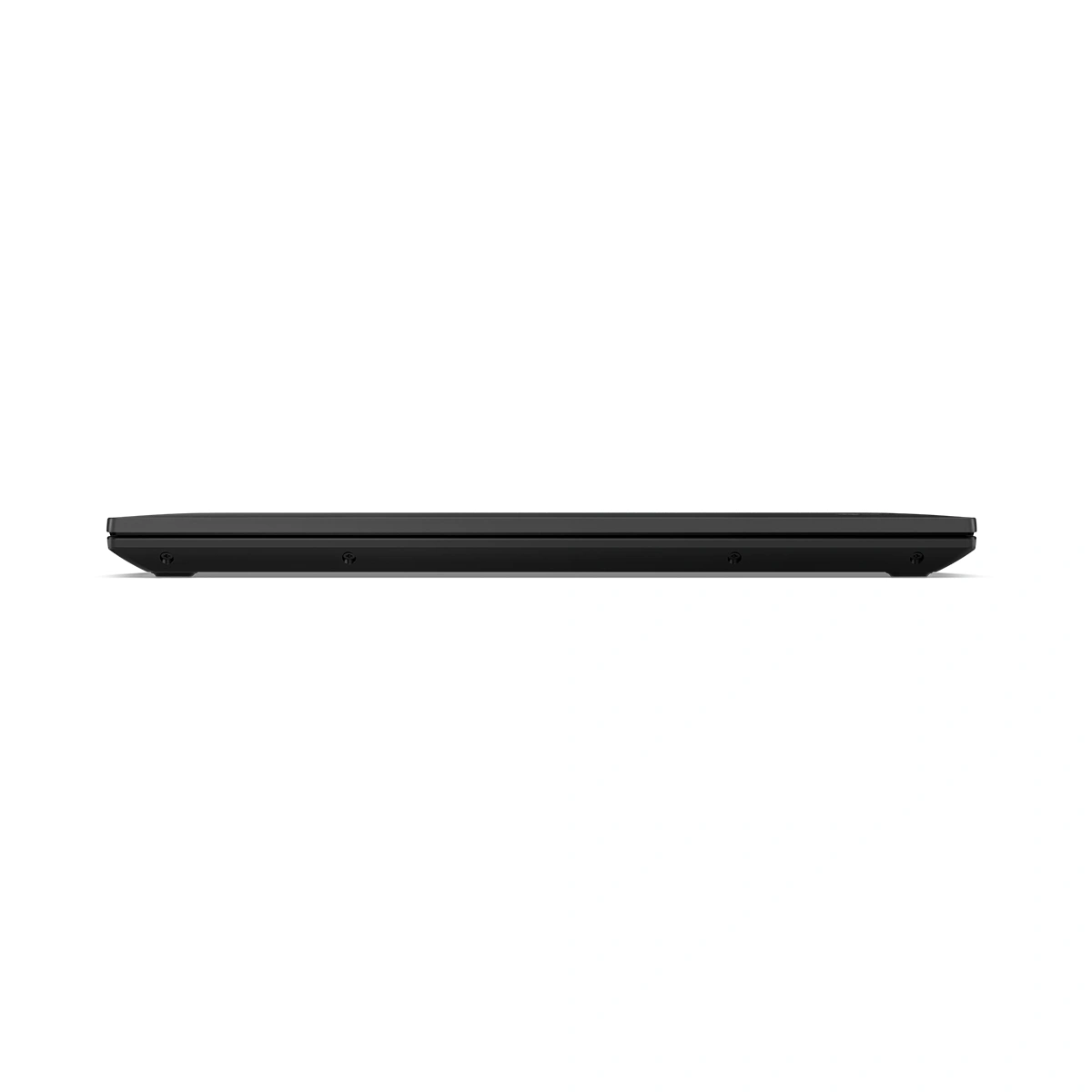

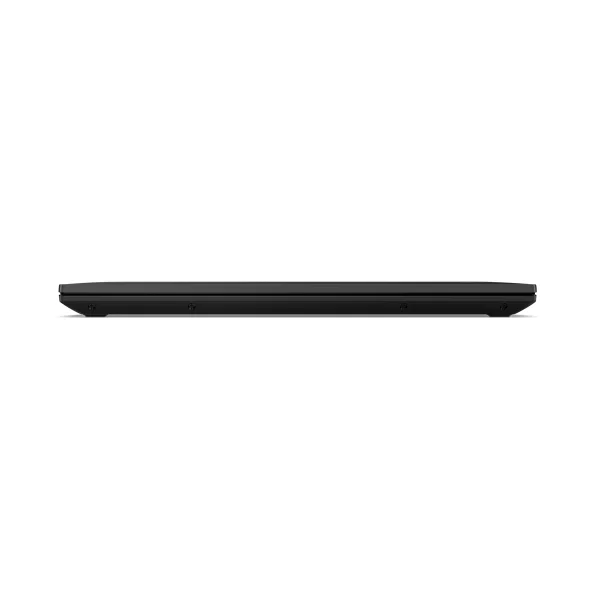

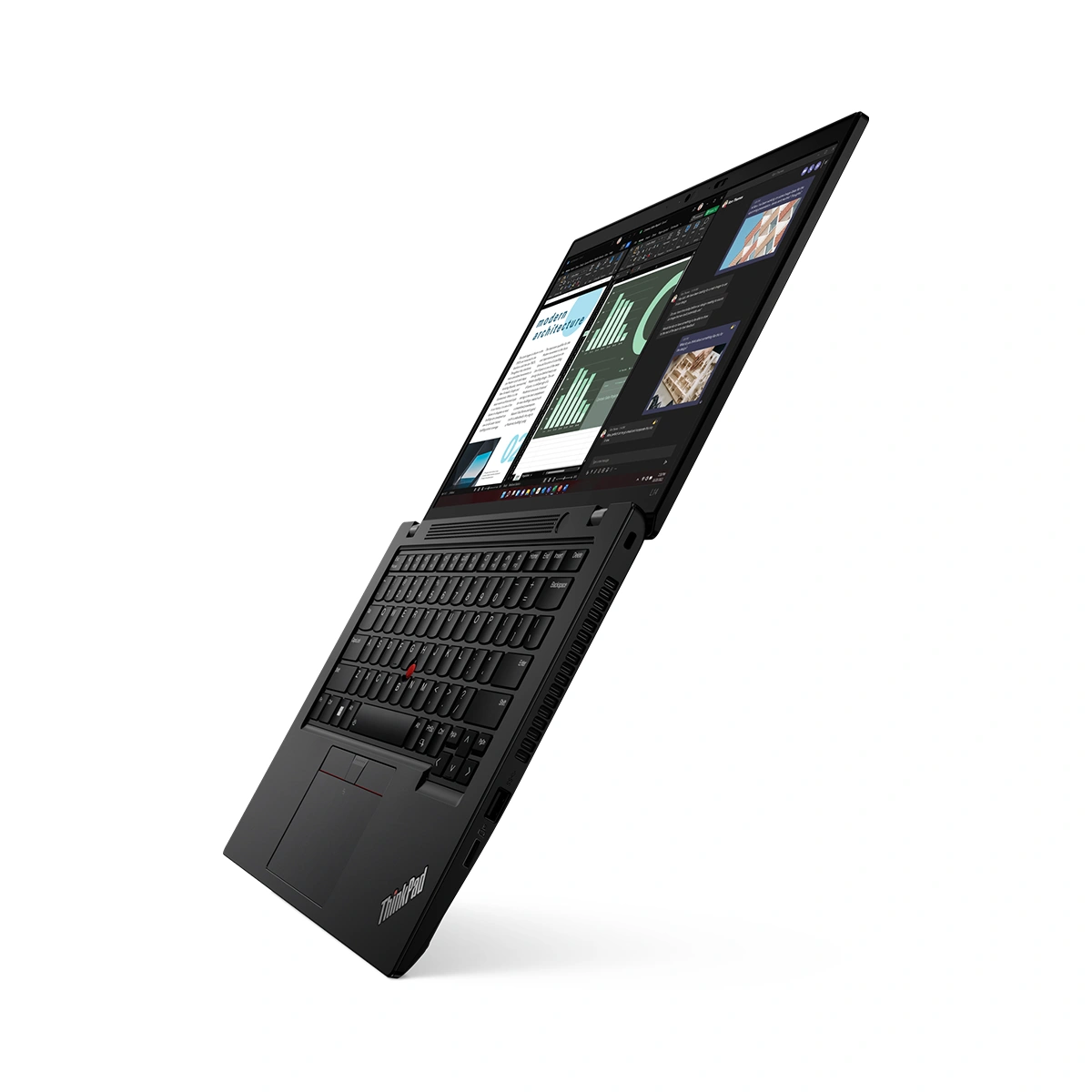

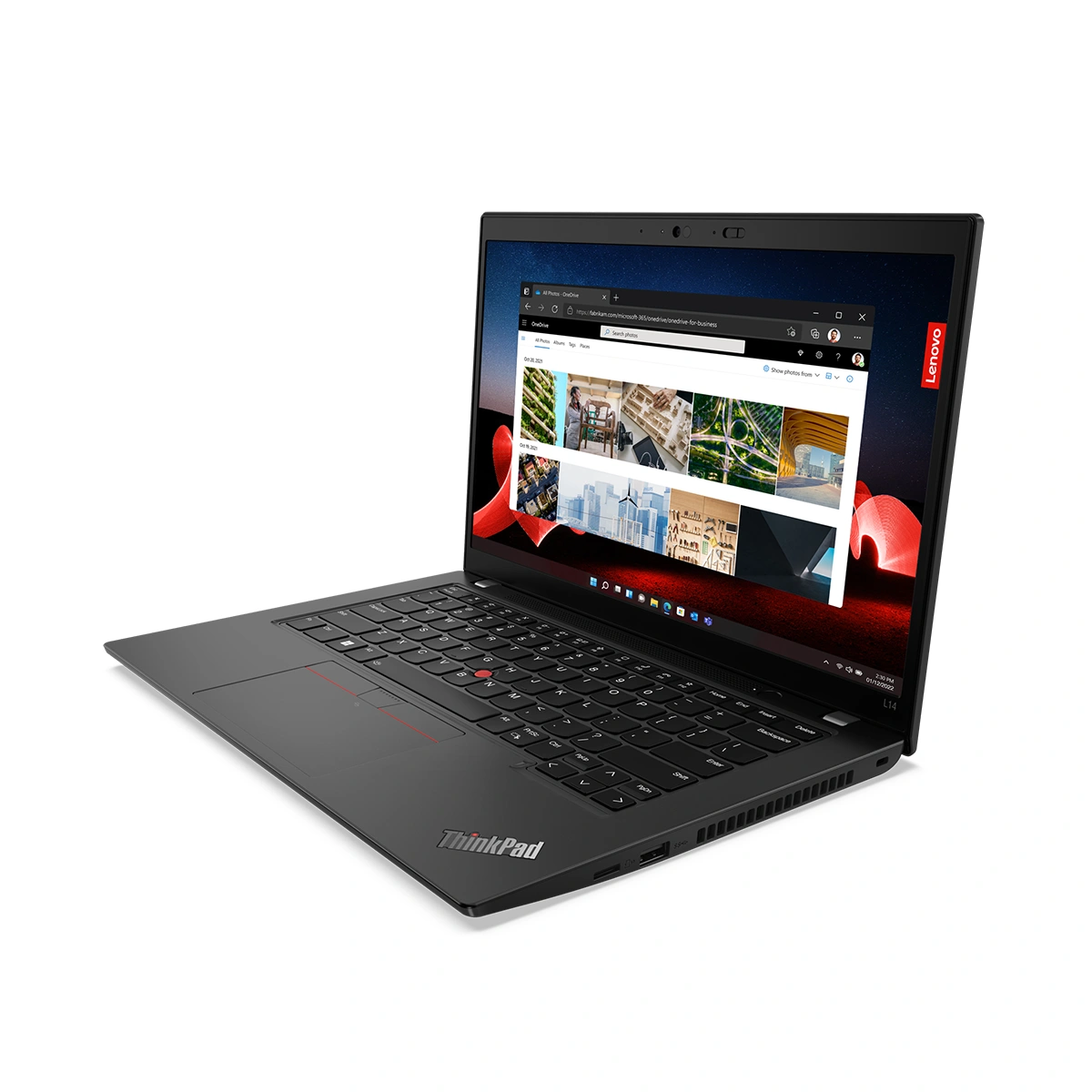

ThinkPad L14 Gen 4 Intel Core i7-1355U

  • Intel Core i7-1355U, 10C (2P + 8E) / 12T, P-core 1.7 / 5.0GHz, E-core 1.2 / 3.7GHz, 12MB
  • 1x 8GB SO-DIMM DDR4-3200
  • 512GB SSD M.2 2242 PCIe 4.0×4 NVMe Opal 2.0
  • Integrated Intel Iris Xe Graphics Functions as UHD Graphics
  • 3Y Courier/Carry-In from 1Y Courier/Carry-In WHB (CPN)
Category:
Processor
Intel® Core™ i7-1355U, 10C (2P + 8E) / 12T, P-core 1.7 / 5.0GHz, E-core 1.2 / 3.7GHz, 12MB
Graphics

Integrated Intel® Iris® Xe Graphics Functions as UHD Graphics
Chipset
Intel® SoC Platform
Memory
1x 8GB SO-DIMM DDR4-3200
Memory Slots
Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory

Up to 64GB DDR4-3200
Storage
512GB SSD M.2 2242 PCIe® 4.0×4 NVMe® Opal 2.0
Storage Support

One drive, up to 2TB M.2 2242 SSD
Storage Slot
One M.2 2242 PCIe® 4.0 x4 slot
Card Reader
microSD Card Reader
Optical
None
Audio Chip
Non-vPro® models: High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby Audio™
Camera
FHD 1080p with Privacy Shutter
Microphone
2x, Array
Battery
Integrated 46.5Wh
Power Adapter
65W USB-C® (3-pin)
DESIGN
Display
14″ FHD (1920×1080) IPS 250nits Anti-glare, 45% NTSC
Touchscreen
None
Keyboard
Non-backlit, English (UK)
Case Color
Thunder Black
Case Material
PC-ABS (Top), PC-ABS (Bottom)
Pen
Pen Not Supported
Dimensions (WxDxH)

325.4 x 217 x 19.83 mm (12.81 x 8.54 x 0.78 inches)
Weight

Starting at 1.4 kg (3.09 lbs)
SOFTWARE
Operating System
None
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M (RJ-45)
WLAN + Bluetooth

Intel® Wi-Fi® 6 AX201, 802.11ax 2×2 + BT5.2
WWAN
WWAN Upgradable to 4G
SIM Card
None
NFC
None
Standard Ports
  • 1x USB 3.2 Gen 1
  • 1x USB 3.2 Gen 1 (Always On)
  • 1x USB-C® 3.2 Gen 2 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
  • 1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
  • 1x HDMI® 2.1, up to 4K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x Ethernet (RJ-45)
  • 1x microSD card reader
Optional Ports (configured)
1x Nano-SIM Card Slot
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® L14 Gen 4 (Intel®)
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0 Enabled
Fingerprint Reader
Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks
Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security
Camera privacy shutter
MANAGEABILITY
System Management
Non-vPro®
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
3Y Courier/Carry-In from 1Y Courier/Carry-In WHB (CPN)
